We at Meera specialized in yarn twisting technologies developing one by one different machine used for various application pioneered in offering carpet yarn manufacturing machines today. In continuation to this process, the market demands lead us to develop continuous yarn bulking and heat setting machine.
APPLICATION :-
>Carpet yarn
>Tyre cord
>Single end BCF yarn
As high as 6000 denier with as low as 20 TPM
FEATURES :-
>Automatic spindle stop on yarn breakage
>Servo driven traverse mechanism
>Hysteresis tension device for uniform unwinding avoiding loop formation & twist fluctuation
>Direct cabling process in two ply application
>Low power consumption due to single yarn balloon
>Double the knot less package compared to normal TFO twisting
>Universal Spindle design enables easy conversion from the Two For One to the direct cabling process & vice versa
>Delivery speed up to 120 mlmin.
>Individual motor driven spindle to minimize power noise and maintenance
>Overall saving in machine cost, labor cost & power cost by 50%

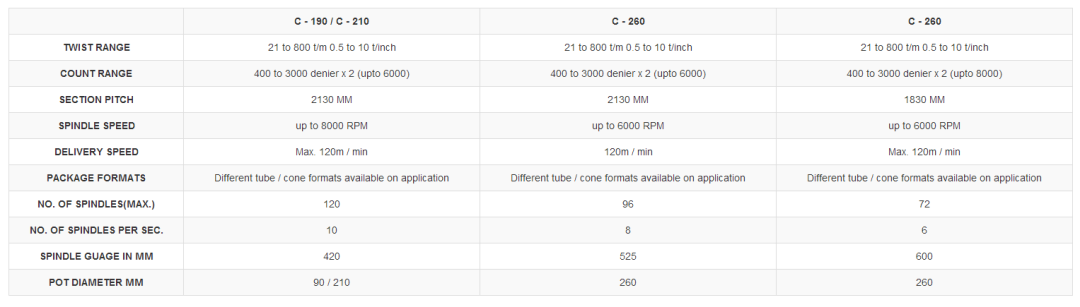

TECHNICAL SPECIFICATIONS :-

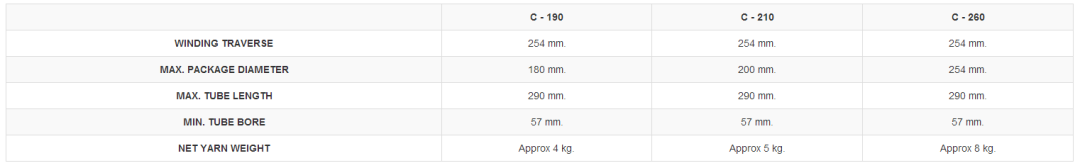

FEED PACKAGE :-

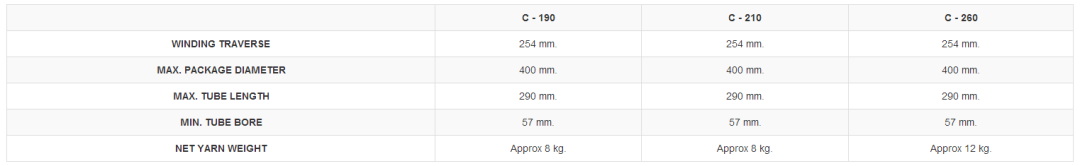

TAKE - UP PACKAGE :-

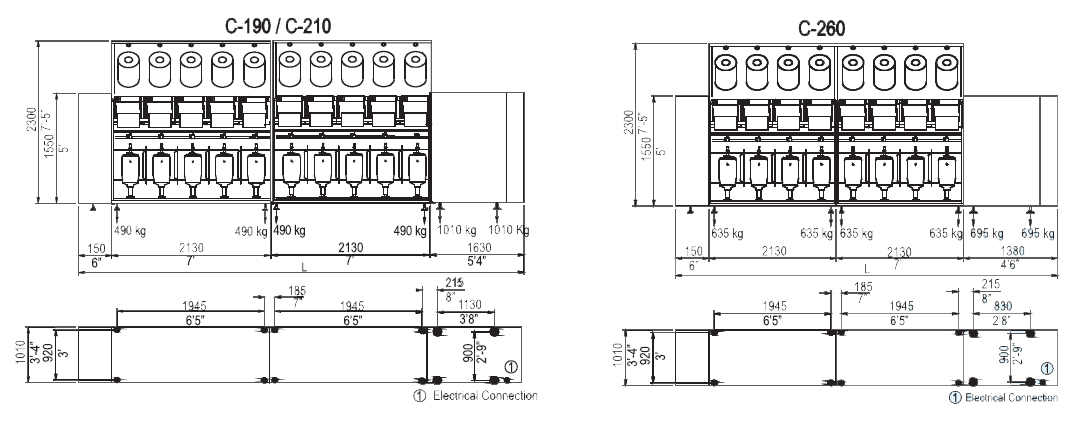

DIMENTIONS :-
